Pressure forming unit with automated thermoforming process for up to 9 models to connect to the existing compressed air system.

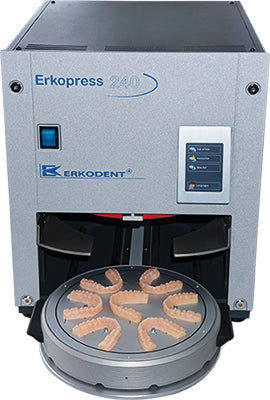

Erkopress 240
Pressure forming device with automated thermoforming process for up to 6 models with base and for up to 9 models without base, to connect with the existing compressed air system.
• The unit works with an overpressure of up to 4 bar. It thus meets the desire of many users to thermoform 3d print models with overpressure.
Technical Specification
• height 40 / width 34,5 / depth 59 cm
• weight 47 kg
• foil diameter 240 mm, thickness 0 - 2.0 mm
• operating voltage: ~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
• wattage: max. 1100 watt
• working pressure 4,5 bar, required mains system pressure > 6 bar
• noise level < 80 dB(A)
• weight 47 kg
• foil diameter 240 mm, thickness 0 - 2.0 mm
• operating voltage: ~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
• wattage: max. 1100 watt
• working pressure 4,5 bar, required mains system pressure > 6 bar
• noise level < 80 dB(A)
Usage
Only thermoforming plates with a diametre of 240 mm can be processed. The thermoforming process is completely automated, the available plates are stored in the program and can be called up in the display with the respective parameters.
Delivery Contents
1 Erkopress 240, 179 000, with
1 foil securing ring (179 015)
1 foil reception (179 010)
1 form pot with model disc support (179 005)
2 model discs (1 pcs. 179 020)
1 power supply cable (170 001)
1 hose connection
1 brush as an input pen
1 foil test pack, Erkodur 240, 0.8 mm thickness, 10 pieces
machine documents (folder), instructions, guarantee card
1 foil securing ring (179 015)
1 foil reception (179 010)
1 form pot with model disc support (179 005)
2 model discs (1 pcs. 179 020)
1 power supply cable (170 001)
1 hose connection
1 brush as an input pen
1 foil test pack, Erkodur 240, 0.8 mm thickness, 10 pieces
machine documents (folder), instructions, guarantee card
Application
The Erkopress 240 enables the efficient production of correction splints/aligners or other series or larger numbers of splints.
